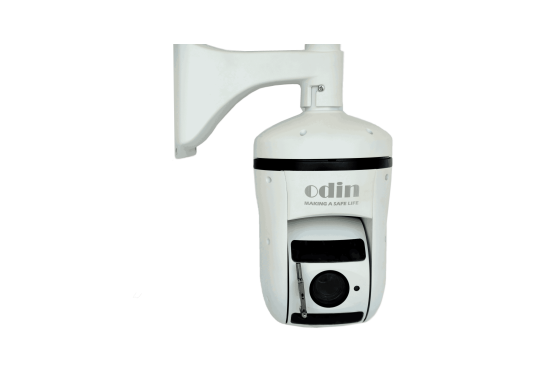

IP SPEED DOME CAMERA

2MP IP SPEED DOME CAMERA

1- CMOS 2 Mega pixel effective pixelسنسور تصویر
High speed Auto focus lens (4.8-173mm) -2
0.05lux -3حداقل روشنایی
H.264 and MJPEG & H.265 -4-
36X -5 زوم اپتیکال
IRWDR ( UP TO 80db) -6
AWB -7
8- دارای IR تا فاصله 150 متر(adaptive)
Wiper -9با قابلیت
IP66  HOUSING -10کلاس عایقی

OD-EPI720​​​​​​​

شرحقابلیت
1/2.8“ CMOS 2 MP CMOS
Image Sensor
0.01 Lux
Minimum Illumination
UP TO 120 db
Dynamic Range
More than 48dB
S/N RATIO
1/2 s to 1/10,000 s, 21 steps
Shutter Speed
Internal Synchronization
Sync System
Auto, ATW, Indoor, Outdoor
White Balance
Optical Zoom 36x
Zoom Ratio
4.8 ~ 173mm
Focal Length
360° endless rotation, 180° Auto
rotate		PAN/TILT Angle
255
Preset Position
1920x1080 (HxV)
Number of Effective Pixels
(HxV)
شرحقابلیت
IPv4 , IPv6 , TCP, UDP, HTTP,
HTTPS, FTP, SNMP		Protocol
YesONVIF Conformance
Internet Explorer 8 or above, Chrome, Firefox
WEB BROWSER

CAMERA

Interface

NETWORK

شرحقابلیت
10Base-T/100Base-TX (RJ-45)
Network Port
1 Input/ 1Output
Sensor Input
1 , 24V AC/DC , 3A (mechanical relay outputs electrically isolated from the camera) Alarm Output
EX Connector
Microphone Input
شرحقابلیت
AC 24V , 3 A
Power Requirements
User Account and Password ProtectionSecurity
Yes
Fan and Heater
84000 Hours calculated by Component Specification
MTBF
IK10IK Grade
-30 °C ~ 70 °C
operating Temperature
20% to 80%
Operating Humidity
IP66Ingress Protection
شرحقابلیت
G.711 & G.726
Audio Compression Format

Audio ​​​​​​​

Camera features

  General

شرحقابلیت
YES and ICR
DAY/NIGHT
YesNoise Reduction
Yes
Image Stabilizer
24MB Max
Video Buffer
دانلود کاتالوگ
شرحقابلیت
H.264,MJPEG , H.265
Video Compression Format
Dual Streaming
Codec Streaming Capability
264: Up to 30FPS (1920*1080)
265: Up to 30FPS (1920*1080)
Maximum Frame Rate
